XSFM-560-T2 560W Flexible Solar Module - Frameless & Framed
X-SOLAR · FLEXIBLE PV MODULES
XSFM-560-T2
560W Lightweight Solar Module
N-TOPCon technology in two lightweight configurations: frameless flexible for suitable curved roofs, and framed lightweight for conventional mounting formats.
| 560W Rated Power | 23.5% Efficiency | 3.1 kg/m² Frameless | 4.8 kg/m² Framed |
TWO CONFIGURATIONS
One platform. Two roof solutions.
|
FRAMELESS FLEXIBLE For curved and low-load roofs2260 × 1200 × 2.7 mm Minimum bending radius: 0.5 m. Installed with approved structural adhesive on a suitable roof substrate or aluminium square-tube substructure. |
FRAMED LIGHTWEIGHT For conventional mounting formats2260 × 1245 × 25 mm A lighter framed alternative for suitable flat or low-slope roof projects. Installed with rails, single clamps and double clamps. |
ESSENTIAL SPECIFICATIONS
Performance at a glance
| Vmp | 43.18 V | Imp | 12.97 A |
| Voc | 52.58 V | Isc | 13.69 A |
| Mechanical Load | 5400 / 2400 Pa | Protection | IP68 · Class II |
N-TOPCon cells · MC4-compatible connector · Operating temperature -40°C to +85°C
Installation and handling
The frameless module may bend in either direction during installation to fit a suitable curved roof. It is not designed for repeated or cyclic bending, which may cause solar-cell microcracks. Final installation must follow project-specific structural, wind-load, drainage, waterproofing and local-code requirements.
Warranty 12-year product warranty · 25-year linear power warranty, subject to applicable X-SOLAR warranty terms.
TECHNICAL REFERENCE

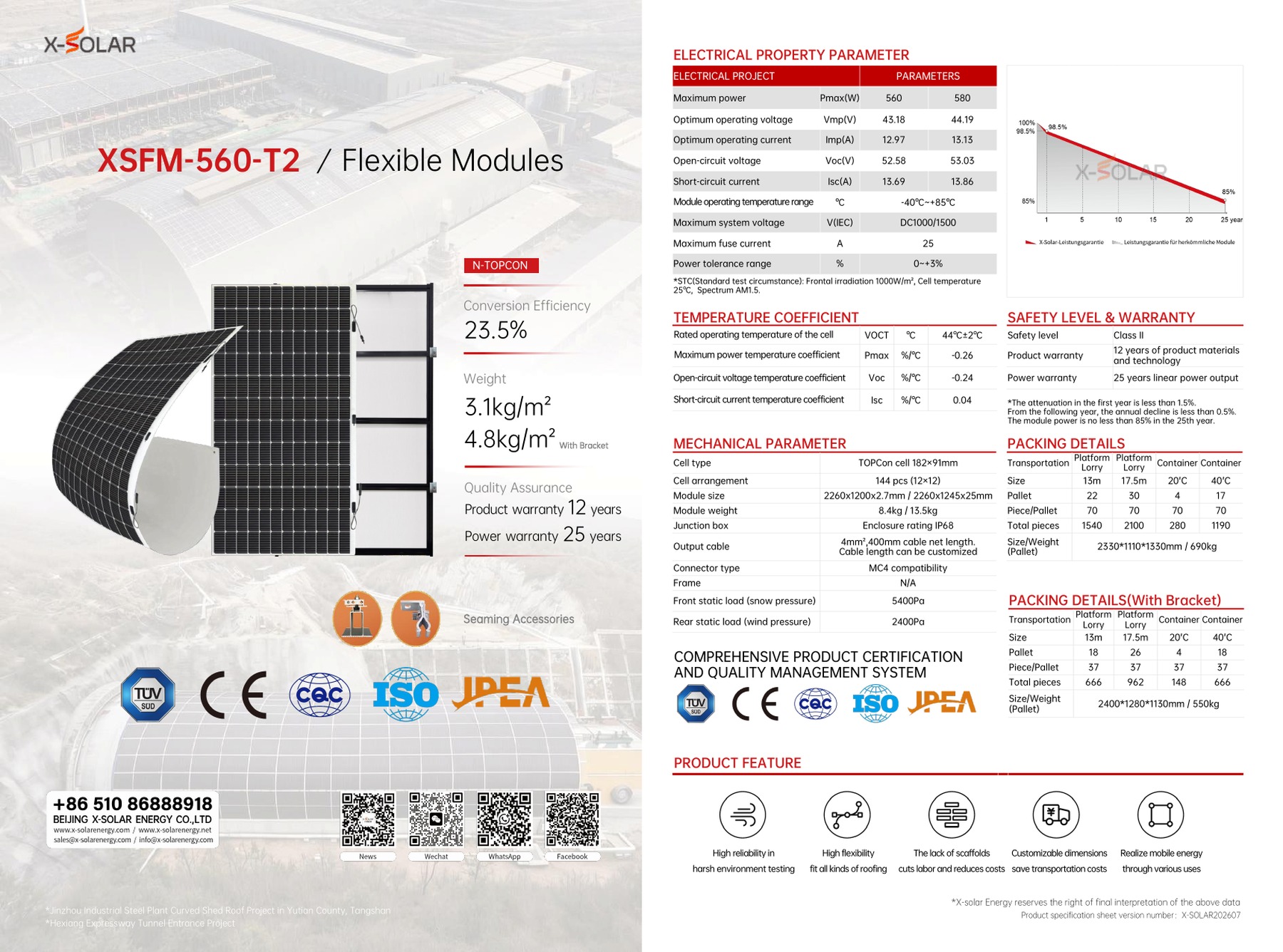

Original product specification
Original X-SOLAR XSFM-560-T2 specification, revision X-SOLAR202607 dated 2026-07-13, retained for detailed reference.
