530W Flexible Solar Module
530W Flexible Solar Module by X-SOLAR. 530W maximum power, 23.5% module efficiency, 2260 × 1110 × 2.7 mm, 7.8 kg. Verified electrical and mechanical specifications are provided below.
X-SOLAR · FLEXIBLE SOLAR MODULE
530W Flexible Solar Module
XSFM-530-T2
A lightweight, frameless solar module designed for low-load-bearing, metal and curved roofs. Its flexible construction allows the module to conform to roof geometry during installation.
Maximum Power
530W
Module Efficiency
23.5%
Weight
3.1 kg/m²
Module Size
2260 × 1110 × 2.7 mm
Also available in a framed lightweight configuration: 2260 × 1155 × 25 mm, 12.5 kg.
CORE SPECIFICATIONS
Verified product facts
| Rated maximum power | 530W |
|---|---|
| Voltage at maximum power (Vmp) | 40.04 V |
| Current at maximum power (Imp) | 13.24 A |
| Open-circuit voltage (Voc) | 48.66 V |
| Short-circuit current (Isc) | 13.97 A |
| Module dimensions | 2260 × 1110 × 2.7 mm |
| Module weight | 7.8 kg |
| Cell configuration | 132 N-TOPCon cells (11 × 12) |
| Junction box | IP68 |
| Static load rating | 5400 Pa front / 2400 Pa rear |
| Warranty | 12-year product / 25-year linear power |
Installation & handling
Designed to bend only as required for installation on suitable curved surfaces. Repeated or cyclic bending is not recommended because solar cells may develop microcracks. Final adhesive, substrate and structural design must be verified for the specific project.

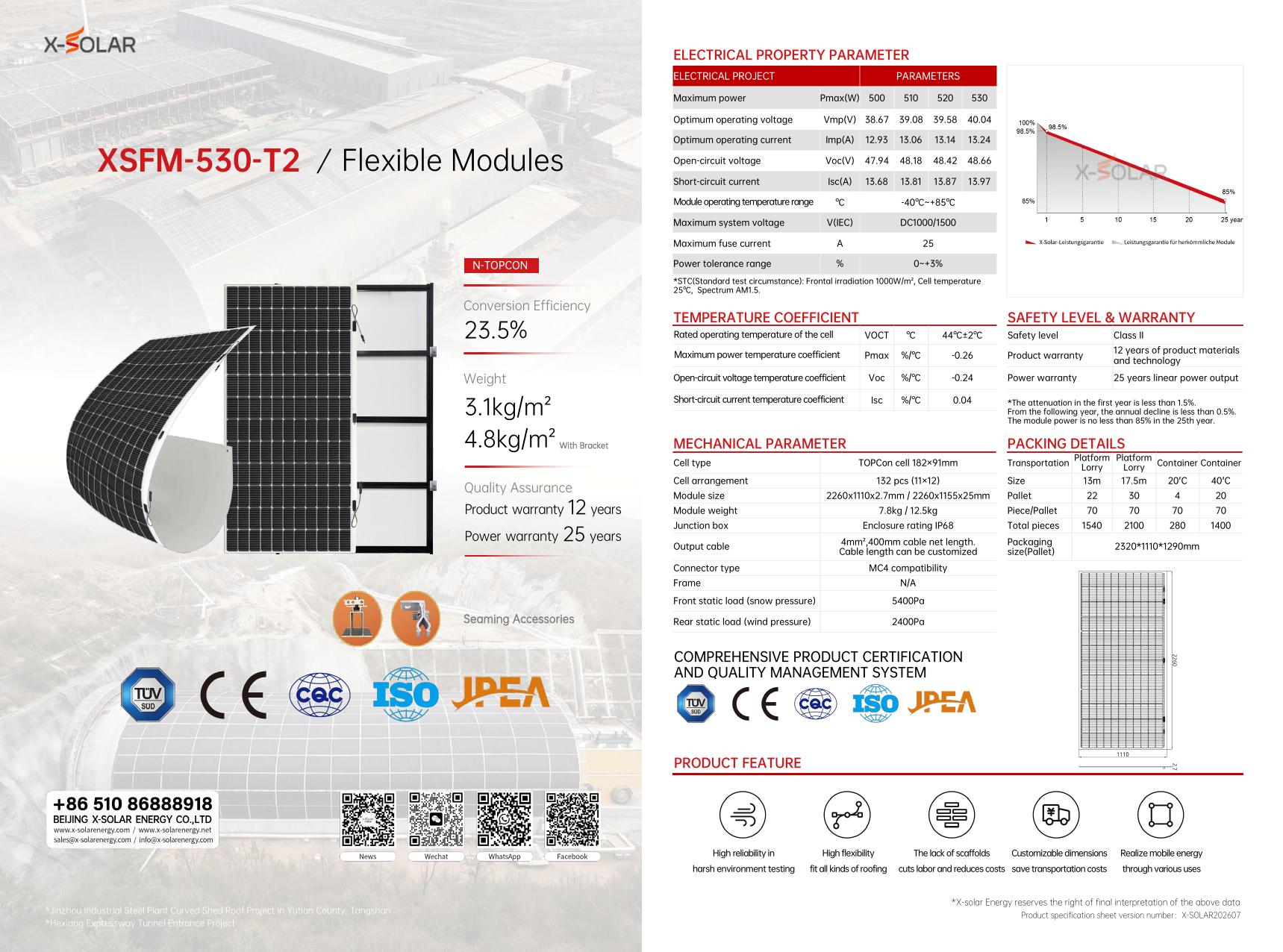

Latest original specification sheet
Reference: X-SOLAR product specification, July 2026.
