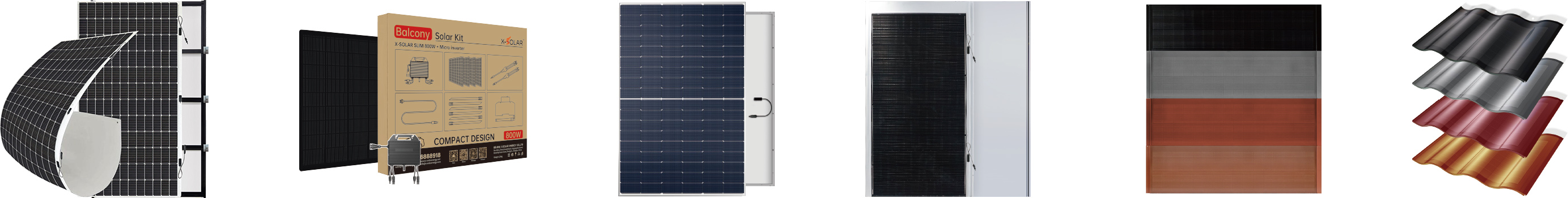

X-SOLAR focuses on lightweight flexible photovoltaic modules and building-integrated photovoltaic applications for curved, low-load and other technically constrained roofs.
The XSFM-560-T2 560W platform is available in two configurations. The frameless flexible version measures 2260 × 1200 × 2.7 mm, weighs 8.4 kg and has a surface density of approximately 3.1 kg/m², with a minimum bending radius of 0.5 m. The framed lightweight version measures 2260 × 1245 × 25 mm, weighs 13.5 kg and has a surface density of approximately 4.8 kg/m².

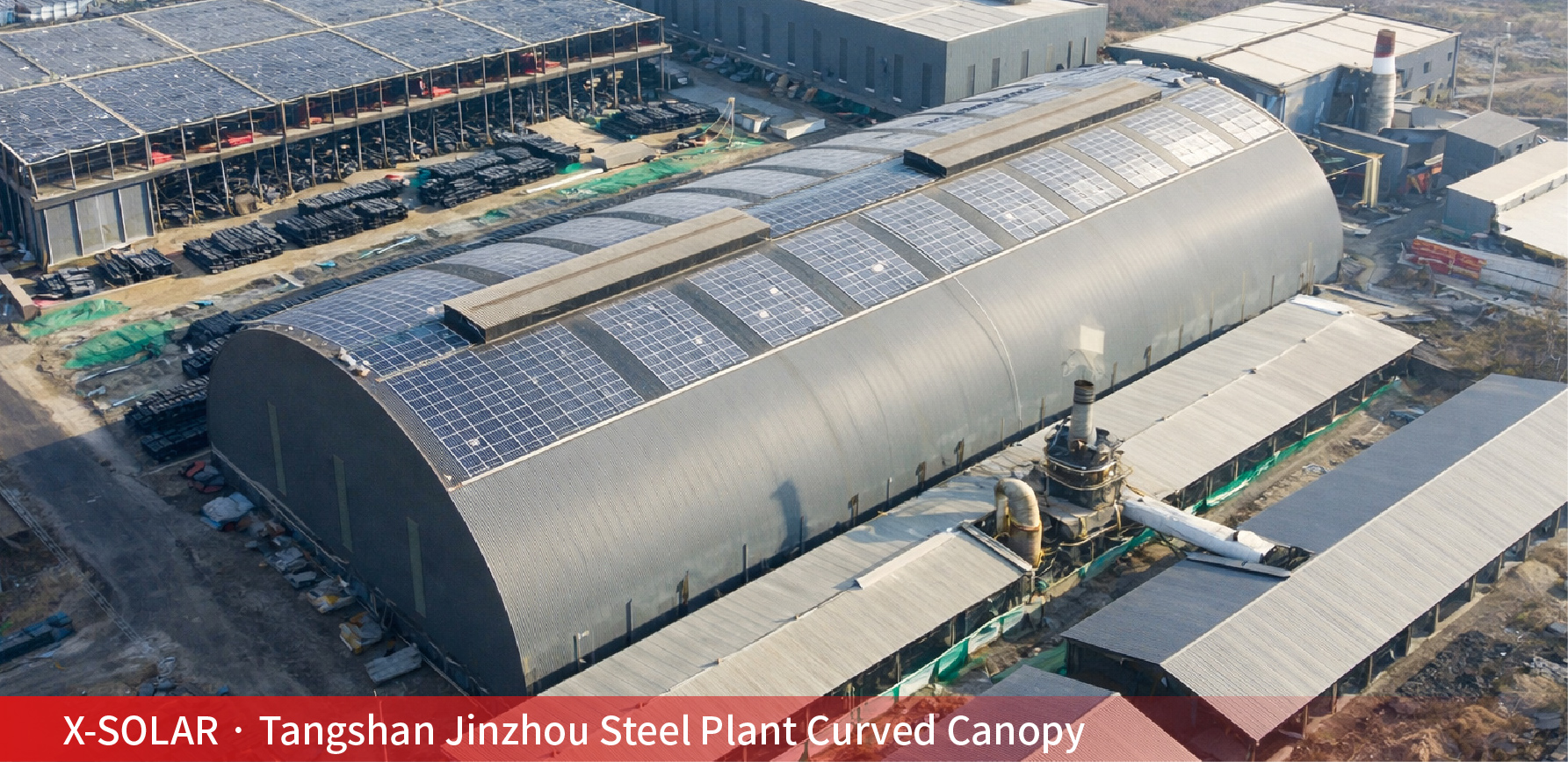

Verified project evidence: the Tangshan Jinzhou Steel Plant curved-roof photovoltaic project in Tangshan, Hebei has an installed capacity of 2.5 MW. It uses X-SOLAR flexible photovoltaic modules with an adhesive fixing system on a continuous curved industrial metal roof. The project is completed and grid-connected, with project-level structural capacity and wind-load checks completed. Read the full case study: https://x-solarenergy.net/newsinfo/3218387.html
Project suitability and installation must be evaluated against the roof substrate, structural capacity, curvature, wind load, drainage, waterproofing, fixing method, construction access and applicable local requirements. X-SOLAR provides project-specific selection and technical coordination based on verified site information.
