XSFM-560-T2 560W Flexible Solar Module - Frameless & Framed
X-SOLAR · FLEXIBLE PV MODULES
XSFM-560-T2
560W Lightweight Solar Module
N-TOPCon technology in two lightweight configurations: frameless flexible for suitable curved roofs, and framed lightweight for conventional mounting formats.
| 560W Rated Power | 23.5% Efficiency | 3.1 kg/m² Frameless | 4.8 kg/m² Framed |
TWO CONFIGURATIONS
One platform. Two roof solutions.
|
FRAMELESS FLEXIBLE For curved and low-load roofs2260 × 1200 × 2.7 mm Minimum bending radius: 0.5 m. Installed with approved structural adhesive on a suitable roof substrate or aluminium square-tube substructure. |
FRAMED LIGHTWEIGHT For conventional mounting formats2260 × 1245 × 25 mm A lighter framed alternative for suitable flat or low-slope roof projects. Installed with rails, single clamps and double clamps. |
ESSENTIAL SPECIFICATIONS
Performance at a glance
| Vmp | 43.18 V | Imp | 12.97 A |
| Voc | 52.58 V | Isc | 13.69 A |
| Mechanical Load | 5400 / 2400 Pa | Protection | IP68 · Class II |
N-TOPCon cells · MC4-compatible connector · Operating temperature -40°C to +85°C
Installation and handling
The frameless module may bend in either direction during installation to fit a suitable curved roof. It is not designed for repeated or cyclic bending, which may cause solar-cell microcracks. Final installation must follow project-specific structural, wind-load, drainage, waterproofing and local-code requirements.
Warranty 12-year product warranty · 25-year linear power warranty, subject to applicable X-SOLAR warranty terms.
TECHNICAL REFERENCE

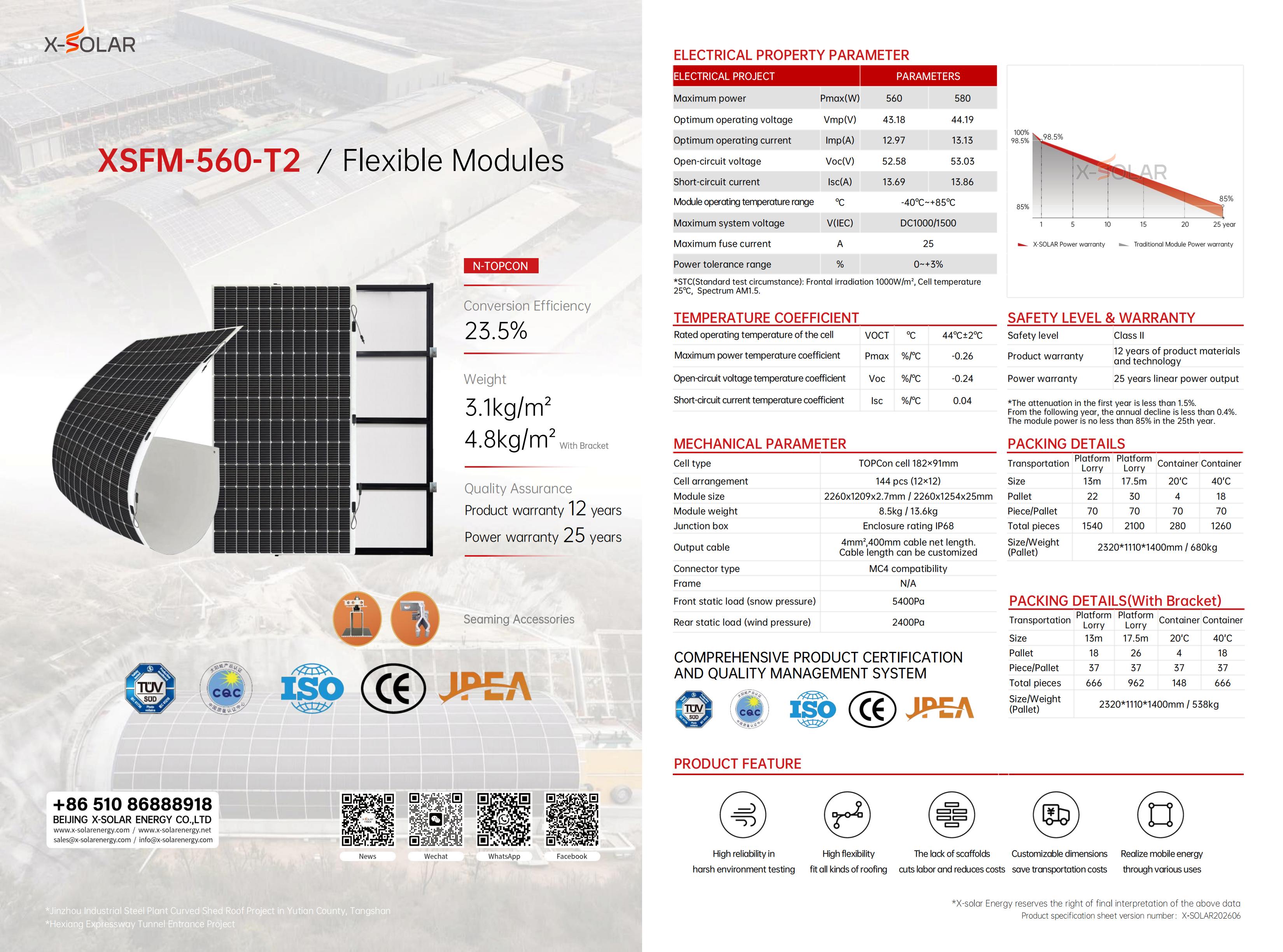

Original product specification
Original X-SOLAR XSFM-560-T2 specification, revision X-SOLAR202607 dated 2026-07-13, retained for detailed reference.
Project-specific technical support
Need a lightweight PV solution for your roof project? Contact X-SOLAR for configuration guidance and project-specific technical support.
TECHNICAL Q&A
560W lightweight solar module: key project questions
Which configuration is suitable for a curved or load-constrained roof?
The frameless flexible configuration is intended for suitable curved and low-load roofs. It weighs 8.4 kg (3.1 kg/m²) and has a minimum bending radius of 0.5 m. Final suitability depends on the roof substrate and project-specific structural design.
When should the framed lightweight configuration be considered?
The framed configuration is a 13.5 kg (4.8 kg/m²) option for suitable flat or low-slope roof projects and conventional mounting formats. It is installed with rails, single clamps and double clamps.
Can the frameless module be repeatedly bent after installation?
No. The frameless module may bend during installation to fit a suitable curved roof, but repeated or cyclic bending is not recommended because it may cause solar-cell microcracks. Follow project-specific wind-load, drainage, waterproofing and local-code requirements.
