120W BIPV Flat Solar Roof Tile
120W BIPV Flat Solar Roof Tile by X-SOLAR. 120W maximum power, 23.5% module efficiency, 1630 × 440 × 29 mm, 9.5 kg. Verified electrical and mechanical specifications are provided below.
X-SOLAR · BIPV SOLAR ROOF TILE
120W BIPV Flat Solar Roof Tile
XSDFM-120-T
An architectural photovoltaic roof tile that combines the building surface with high-efficiency solar generation.
Maximum Power
120W
Module Efficiency
23.5%
Weight
9.5 kg per piece
Module Size
1630 × 440 × 29 mm
Flat photovoltaic roof tile designed to combine weather protection with solar power generation.
CORE SPECIFICATIONS
Verified product facts
| Rated maximum power | 120W |
|---|---|
| Voltage at maximum power (Vmp) | 9.59 V |
| Current at maximum power (Imp) | 12.50 A |
| Open-circuit voltage (Voc) | 10.99 V |
| Short-circuit current (Isc) | 13.26 A |
| Module dimensions | 1630 × 440 × 29 mm |
| Module weight | 9.5 kg |
| Cell configuration | 32 N-TOPCon cells (2 × 16) |
| Junction box | IP68 |
| Static load rating | 5400 Pa front / 2400 Pa rear |
| Warranty | 15-year product / 30-year linear power |

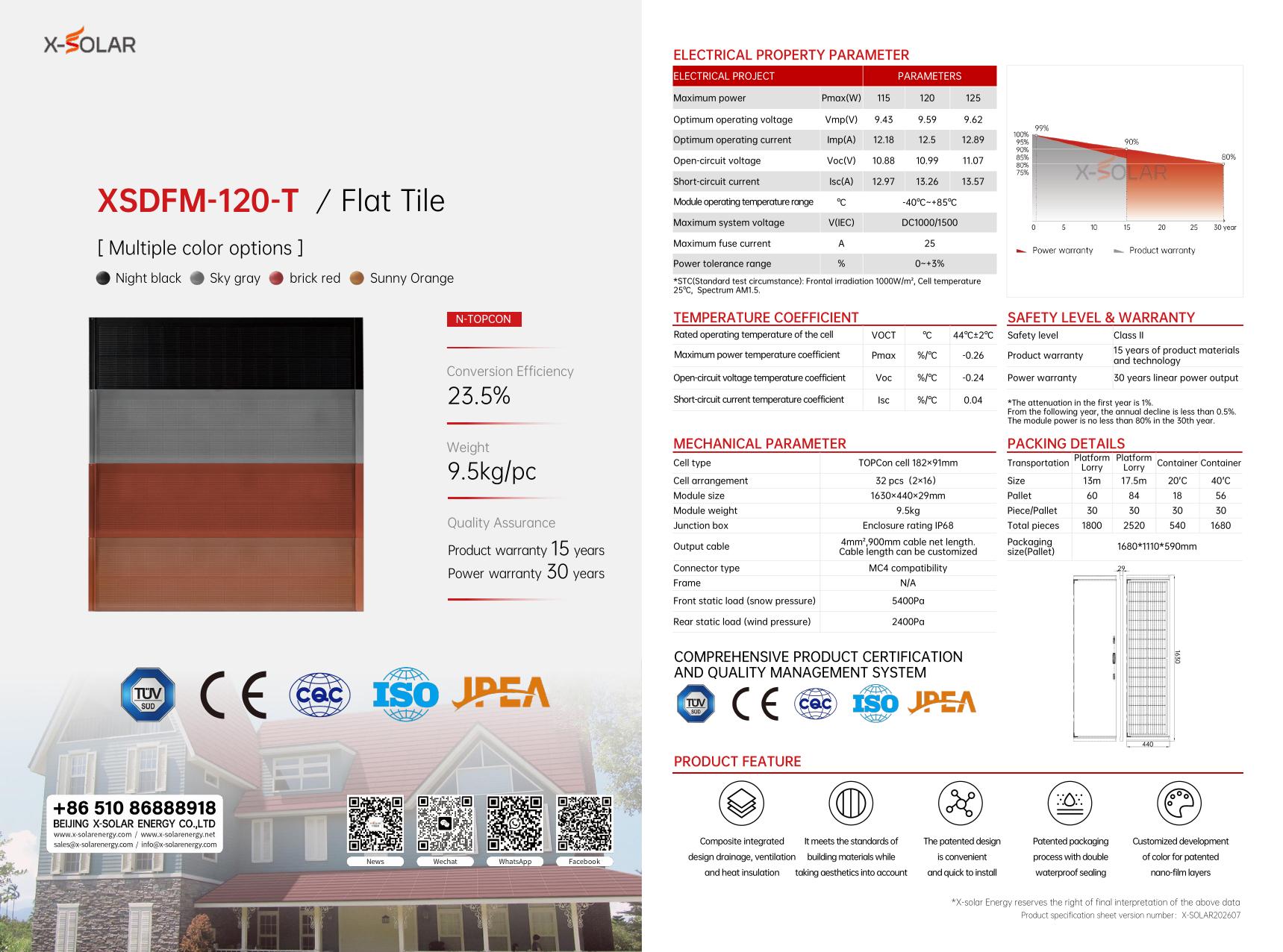

Latest original specification sheet
Reference: X-SOLAR product specification, July 2026.
