50W BIPV Curved Solar Roof Tile
50W BIPV Curved Solar Roof Tile by X-SOLAR. 50W maximum power, 23.8% module efficiency, 685 × 420 × 9 mm, 5.5 kg. Verified electrical and mechanical specifications are provided below.
X-SOLAR · BIPV SOLAR ROOF TILE
50W BIPV Curved Solar Roof Tile
XSDCM-50-H
An architectural photovoltaic roof tile that combines the building surface with high-efficiency solar generation.
Maximum Power
50W
Module Efficiency
23.8%
Weight
5.5 kg per piece
Module Size
685 × 420 × 9 mm
Curved photovoltaic roof tile for architectural roofs requiring a traditional tile profile.
CORE SPECIFICATIONS
Verified product facts
| Rated maximum power | 50W |
|---|---|
| Voltage at maximum power (Vmp) | 5.98 V |
| Current at maximum power (Imp) | 8.37 A |
| Open-circuit voltage (Voc) | 6.69 V |
| Short-circuit current (Isc) | 8.62 A |
| Module dimensions | 685 × 420 × 9 mm |
| Module weight | 5.5 kg |
| Cell configuration | 9 HJT cells (3 × 3) |
| Junction box | IP68 |
| Static load rating | 5400 Pa front / 2400 Pa rear |
| Warranty | 15-year product / 30-year linear power |

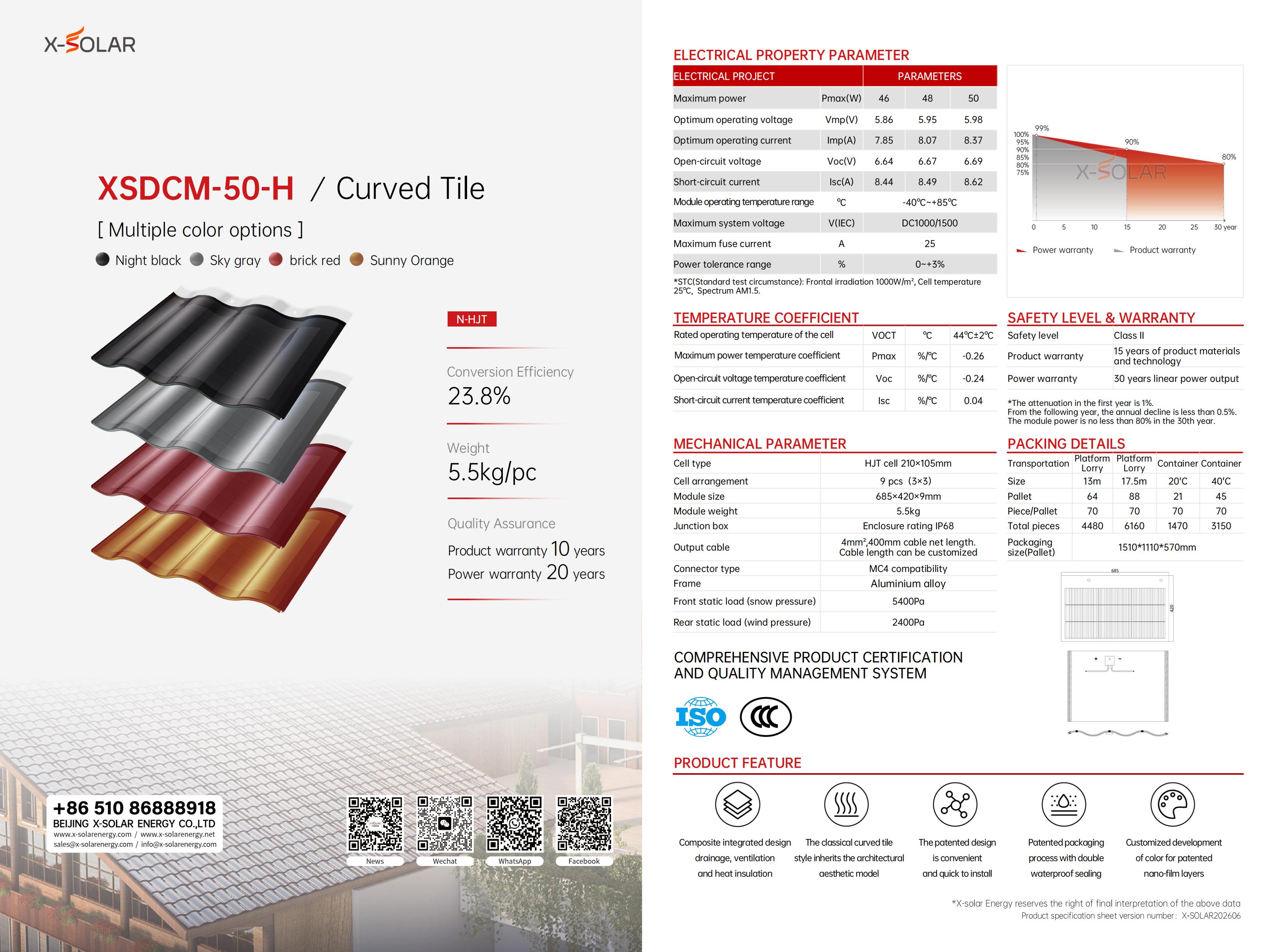

Latest original specification sheet
Reference: X-SOLAR product specification, July 2026.
