2000W Super-Light Balcony Solar Module Set
2000W Super-Light Balcony Solar Module Set by X-SOLAR. 2000W maximum power, 23.5% module efficiency, 2260 × 1110 × 2.7 mm per module, 7.8 kg per module. Verified electrical and mechanical specifications are provided below.
X-SOLAR · BALCONY SOLAR SYSTEM
2000W Super-Light Balcony Solar Module Set
XSFM-2000-T2
A complete super-light balcony solar solution combining high-efficiency flexible modules with a 2000W micro grid-connected inverter.
Maximum Power
2000W
Module Efficiency
23.5%
Weight
3.1 kg/m²
Module Size
2260 × 1110 × 2.7 mm per module
System includes a 2000W micro photovoltaic grid-connected inverter with four MPPT inputs. Compatible module options: 500–530W.
CORE SPECIFICATIONS
Verified product facts
| Rated maximum power | 2000W |
|---|---|
| Voltage at maximum power (Vmp) | 38.67–40.04 V |
| Current at maximum power (Imp) | 12.93–13.24 A |
| Open-circuit voltage (Voc) | 47.94–48.66 V |
| Short-circuit current (Isc) | 13.68–13.97 A |
| Module dimensions | 2260 × 1110 × 2.7 mm per module |
| Module weight | 7.8 kg per module |
| Cell configuration | 132 N-TOPCon cells per module |
| Junction box | IP68 |
| Static load rating | 5400 Pa front / 2400 Pa rear |
| Warranty | 12-year module product / 25-year linear power |
Installation & handling
Designed to bend only as required for installation on suitable curved surfaces. Repeated or cyclic bending is not recommended because solar cells may develop microcracks. Final adhesive, substrate and structural design must be verified for the specific project.

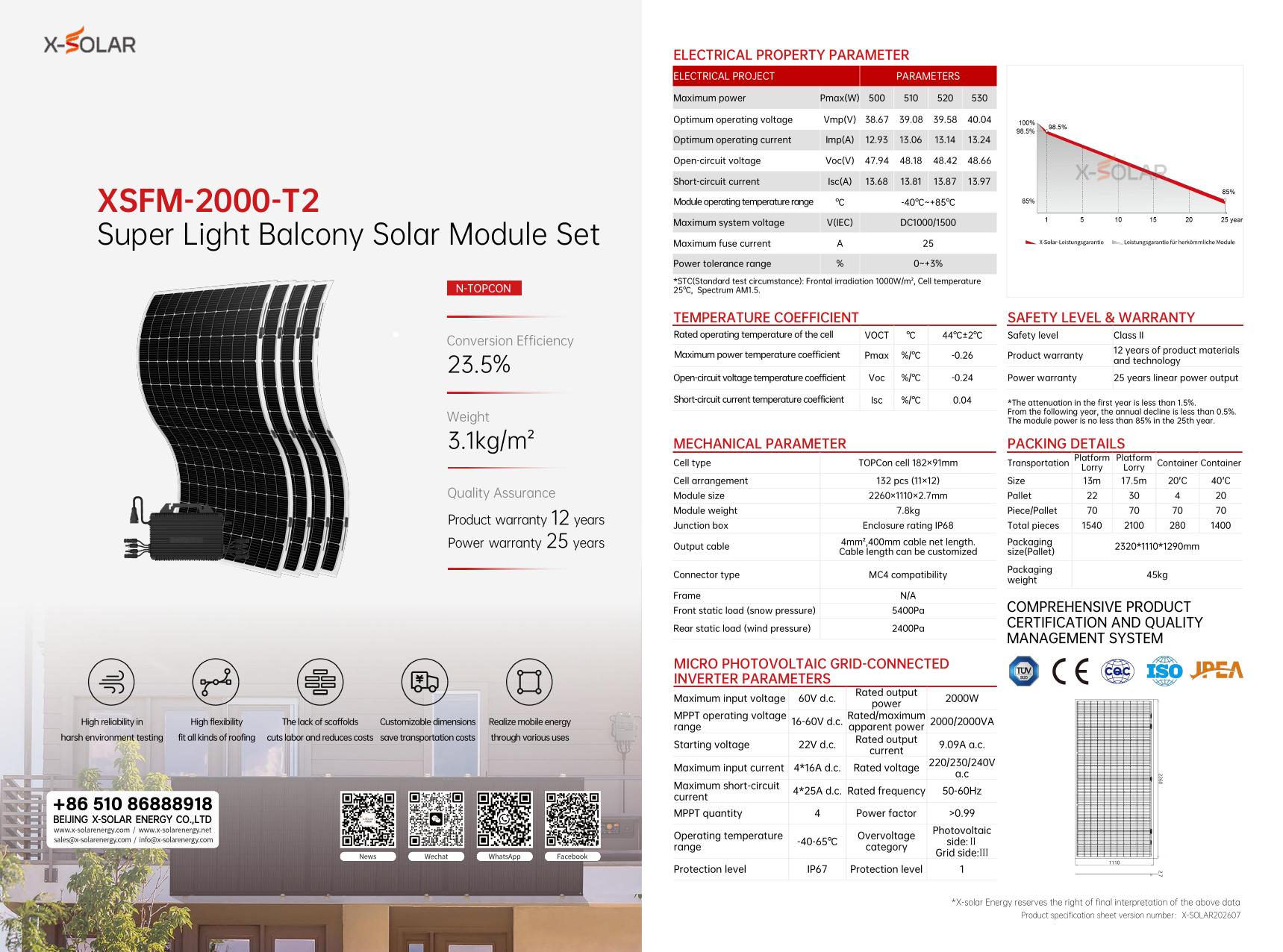

Latest original specification sheet
Reference: X-SOLAR product specification, July 2026.
